Signalling system

Simplicity and intuitive operation
Non-speaking device
Suitable for: homes for the elderly, homes with special needs, long-term care facilities, hospices, hospitals

The alarm device provides patients with the ability to easily summon staff whenever needed. With the simple push of a button, a signal is sent to alert staff immediately and allow them to intervene quickly.

Signalling device

Nurse station

Master terminal MT-07 IP

Master terminal MT-07 IP — Description

The master terminal centralizes the operation of the communication device into a room with a permanent service, which is usually the nurses' office. It offers a highly comfortable and clearly arranged graphical user interface, combined with simple operation and control of function keys directly on the operating graphic touch screen.

10.4 "LCD panel with direct control on the touch screen (touch-screen).

Voice communication takes place via modern HD VoIP technology.

Ergonomic shape of the terminal.

Variable placement on a table or wall.

Includes USB port for data backup and SW upgrade.

The main terminal is supplied with a power adapter and a cable for connection to the main terminal socket.

Main function

Centralization of the operation of the communication device into a room with permanent service.

Voice navigation message alerting staff to new calls and announcing the location of the call.

Possibility to connect any number of terminals on each department with the possibility of defining filters for selected types of calls or room numbers (area zone nursing).

Unlimited number of displayed call points.

Enter the participant's name.

Calling a participant using speed dialing.

Discrete conversational connection of medical staff with patients / clients.

Loud transmission of messages to all rooms within the department (central announcement).

Location of staff registration in bed rooms and display on the main terminal.

Possibility of transferring a telephone call from the city telephone network to the patient's / client's bed.

Record the history of all types of calls and their protection in the event of a network failure.

Image transmission from an IP camera located at the front door.

Night operation (volume regulation of room terminals, main terminal).

Technical Specifications

Material: Thermoplastic, stainless steel, steel

Color: White

Dimensions: 338 x 210-235 x 195 mm

Weight: 4475g

Power supply: Adaptér 230V / 12V / 2A.

Maximum power consumption: 12W.

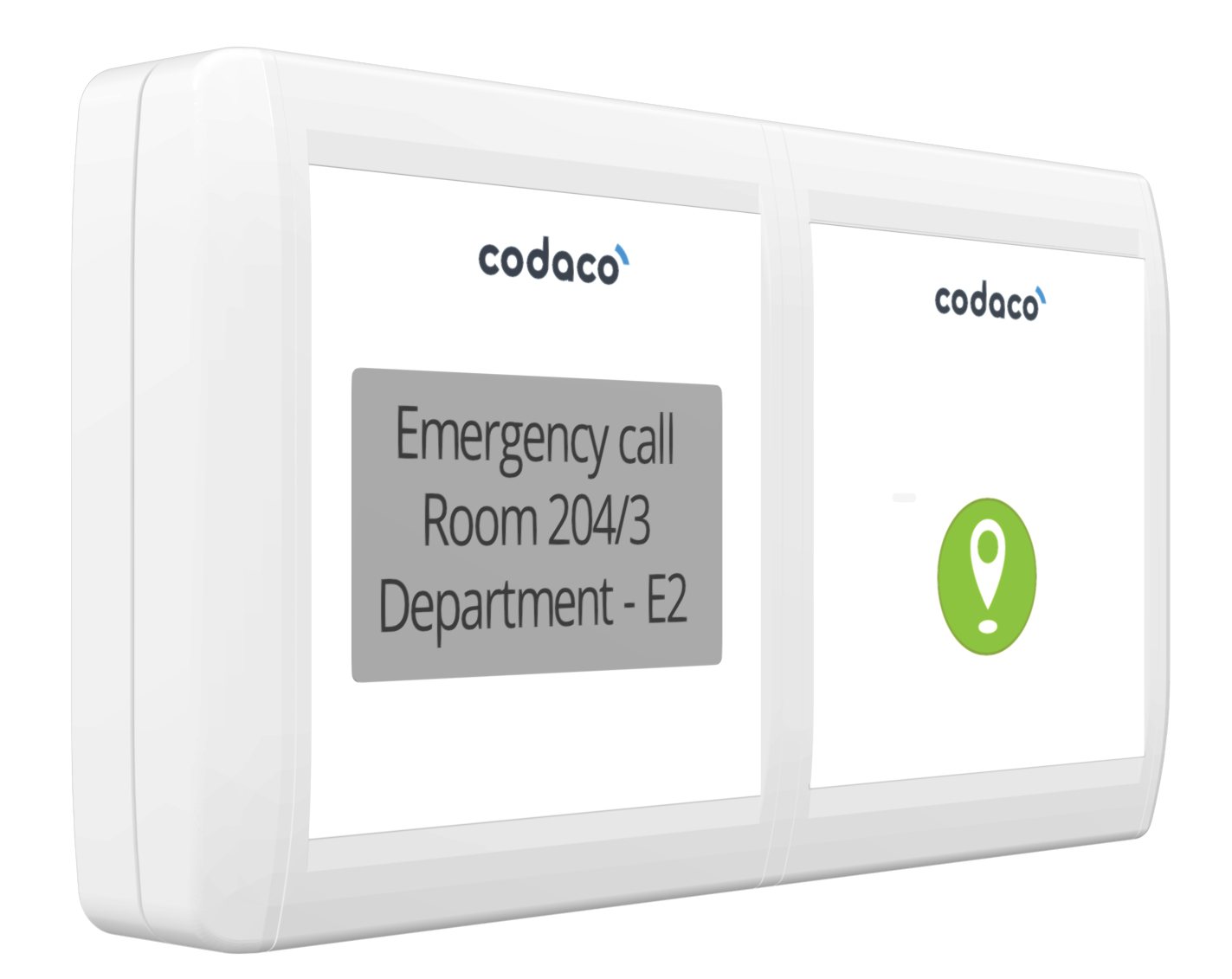

Nurse terminal NT-01 IP

Nurse terminal NT-01 IP — Description

It is intended for the centralization of service and enables cancel of patient call only without having possibility for speech call

Nurse terminal contains display showing the place of origin and type of call (priority)

It is usually located in the nurse room

Technical Specification

Dimensions: 151 x 82 x 23 mm

Weight: 171g

Power supply: 24V

Maximum power input: 15W

DECT phone (analog.line)

DECT phone (analog.line) — Description

Portable analog cordless telephone DECT with a function that allows the caller number to be displayed "CALL ID".

The range of the device (max. Distance of the handset from the base) is usually 30 m inside the building. The range of the device always depends on the local conditions and properties of the building materials used.

Used to receive telephone calls (eg from the city or hospital telephone network) with the possibility of transferring the telephone call to the patient's bed (only via analog line).

In the case of an active call, it displays all types of calls (in some cases, due to the limited size of the display, only basic data can be displayed - type of calland room number).

Allows you to answer a call and talk directly to the caller.In the idle state (there is no call within the IP communication system), the cordless telephone serves as a normal business telephone within the telephone network of the medical device.

The base of the telephone serves as a charger for the rechargeable batteries of the portable telephone.

Technical specifications

Dimensions: 154 x 50 x 28 mm

Weight: 120g.

Power supply: 230V, 50Hz.

Maximum power consumption: 4W.

Entrance

Entrance Terminal ET-07 IP

Entrance Terminal ET-07 IP — Description

Provides a loudspeaker connection to the main terminal.

It is mainly placed at the entrance door to the department as a doorbell.

In conjunction with a card reader, it creates a simple access system.

Possibility of connecting an LED signal light.

The element is not intended for outdoor use!

As with all other elements of the system, it can only be used indoors (unless otherwise stated).

Enables connection to an IP camera and transmission of images from the entrance door to the main terminal.

Antibacterial surface (silver admixture in the plastic material)

Technical specifications

Dimensions: 151 x 82 x 23 mm

Weight: 207g.

Power supply: 24V

Maximum power consumption: 1,8W.

IP camera

IP camera — Description

After activating a call from a specific location, it allows the transmission of an unrecorded online image to the main terminal. The most common is located at the entrance door to the department.

It is mounted on the wall or ceiling using a custom bracket.

A commercial PoE adapter ( max 15W) connected to 230V/50Hz is usually used for power supply

Alternatively, a 24V system power supply or a 12V DS module can be used, but it depends on the capabilities of the specific camera type.

Technical specifications

Lens: 3,8mm

30 frames per second

Dimensions: 92.6 x 92.6 x 79.5 mm

Weight: 500g.

Power supply: 230V (12V)

Maximum power consumption: 15W.

Corridor

Corridor lamp LED CL

Corridor lamp LED CL — Description

The signal lamp has three different colored lights, signaling in connection with the room terminal the status and type of call at the given location.

It is placed visibly in the hallway above the door of each bed room or separate bathroom and toilet. (Note that the light is not normally placed above the service room door).

Antibacterial surface (silver admixture in the plastic material)

Technical specifications

Dimensions: 82 x 82 x 56 mm

Weight: 105g.

Power supply: 24V

Maximum power consumption: 1,5W.

Directional light LED DL IP

Directional light LED DL IP — Description

Configuration settings are made using standard configuration software.

Possibility of gluing directional arrows (not part of the luminaire).

It is used in cases of a fragmented floor plan of the department, when the nursing staff from the central station (corridor) cannot see all the lights above the room.

The direction indicator lamp is then placed visibly and "repeats" the light signals of the lamps that are not visible in the given direction.

Technical Specification

Dimensions: 82 x 82 x 56 mm

Weight: 135g.

Power supply: 24V

Maximum power input: 1,5W.

Patient's room

Patient's bed connection with holder BC-01H IP

Patient's bed connection with holder BC-01H IP — Description

It is connected to the room terminal and provides the the connection to the patient button (no speech unit PU-01).

It enables the activation of an emergency call (no speech) from the bed.

It is most often installed in ICU rooms, where the staff is always present and there is no speech function with the patient requested.

When using a patient socketwith print holder. (no speech), a connection to a room call terminal is recommended to maintain call functions throughout the room.

It is thus easy to create a signaling system with a connection to a full-fledged IP communication system.

Patient drawer with print holder. (no call) is used to hang up and connect only the patient button (no call).The connector for connecting the patient button is in the holder position from the bottom of the element.

Technical Specification

Dimensions: 82 x 82 x 39 mm

Weight: 80g.

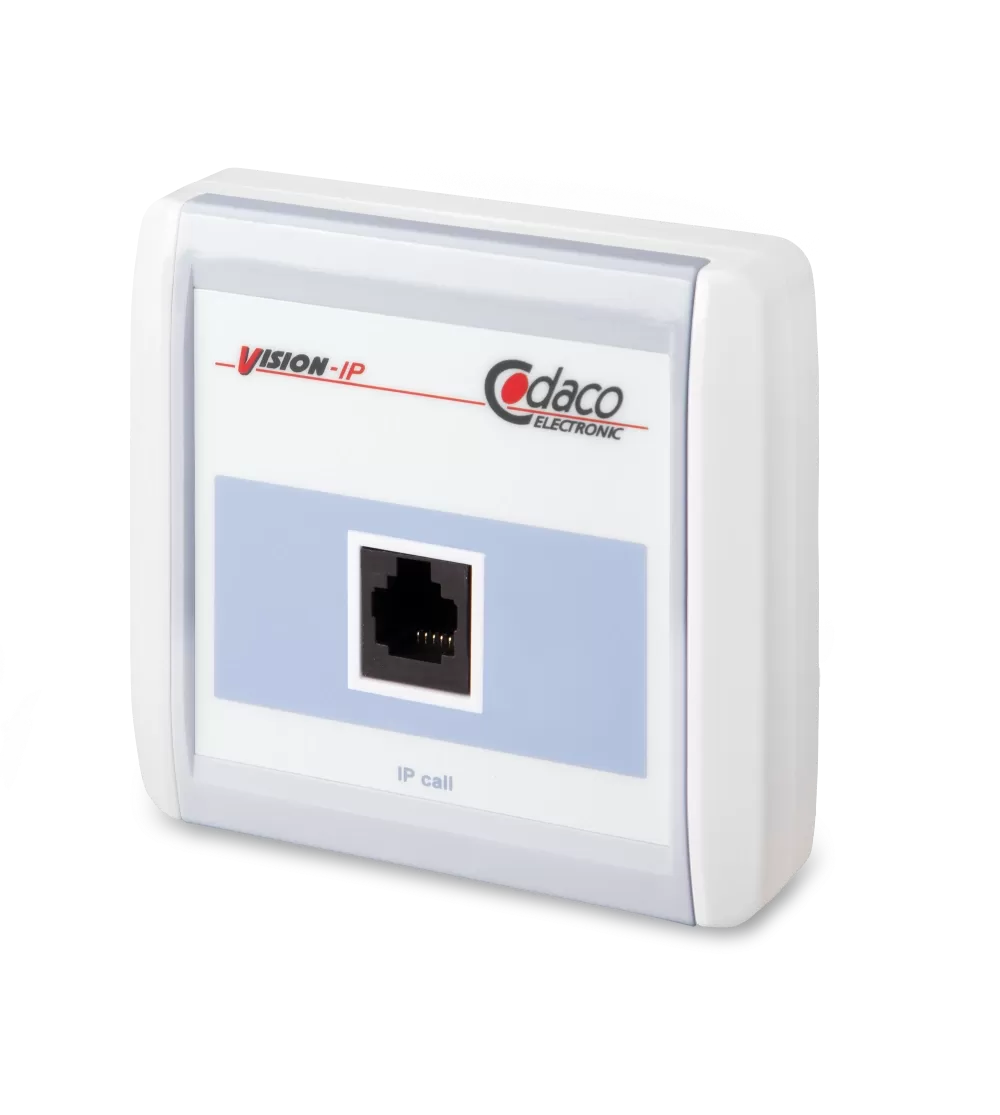

Patient's bed connection BC-01

Patient's bed connection BC-01 — Description

It is connected to the room terminal and provides the the connection to the patient button (no speech unit PU-01).

It enables the activation of an emergency call (no speech) from the bed.

It is most often installed in ICU rooms, where the staff is always present and there is no speech function with the patient requested.

When using a patient socket with print holder (no speech), a connection to a room call terminal is recommended to maintain call functions throughout the room.

It is thus easy to create a signaling system with a connection to a full IP communication system.

It is used in bed rooms, where there are wall installation ramps and a socketis mounted directly on this ramp.The connector for connecting the patient terminal is from the front of the element.A separate bracket must be used to hang the patient button (without a call) on the wall.

Technical Specification

Dimensions: 82 x 82 x 23 mm

Weight: 75g.

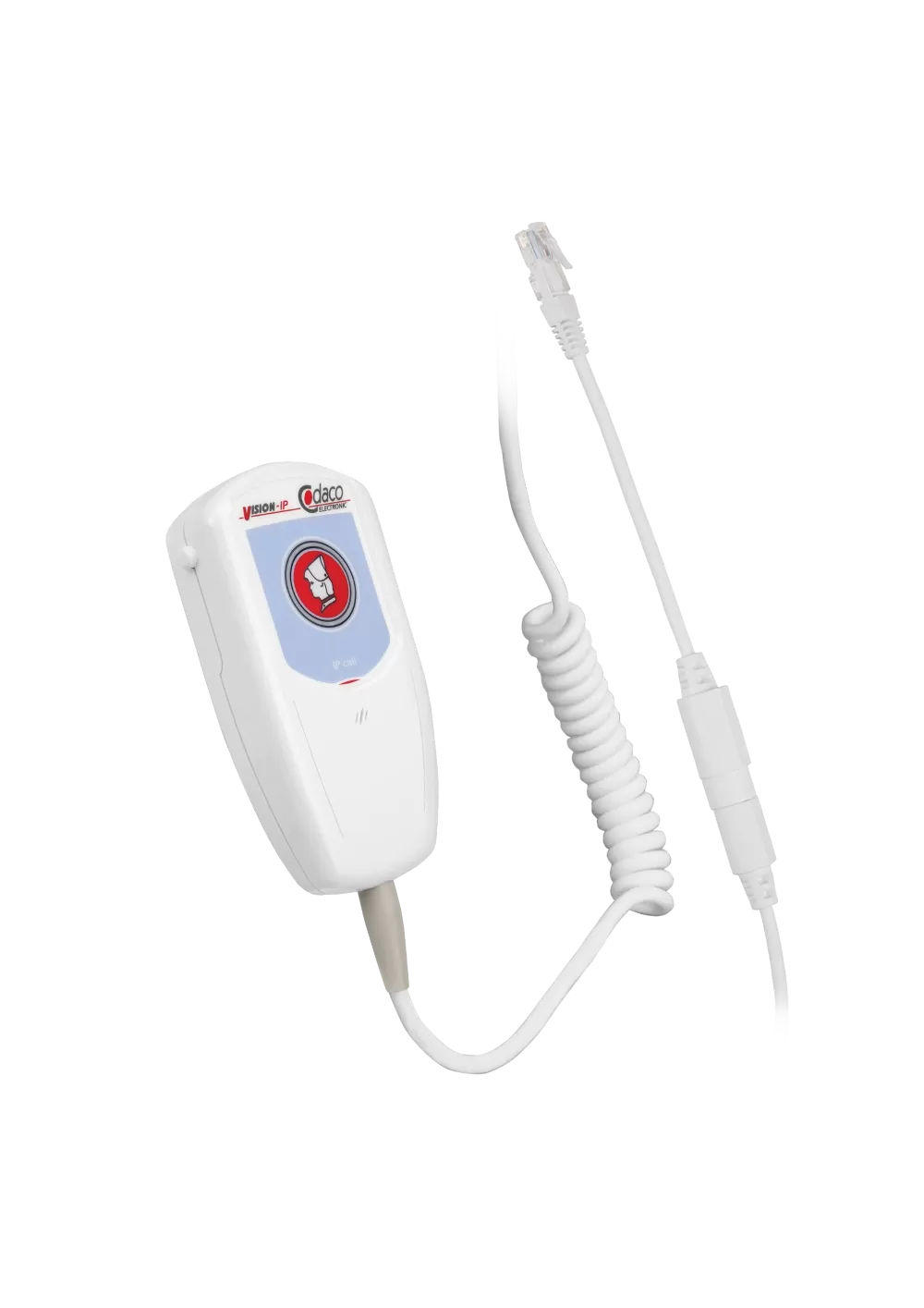

Patient's unit (no speech) PU-01 IP

Patient's unit (no speech) PU-01 IP — Description

This element is a basic variant of the patient button, providing only an emergency button call to nurse without speech.

It does not allow any conversation with her sister or listening to an entertainment program.

Connects to the patient socket (no call). It is most often used in ICU rooms,where the staff is always present and no conversational connection with the patient is required.

It is also suitable for installation in nursing homes for clients with reduced orientation in space.

It contains only one large red button (backlit at night) with the nurse symbol.

The function of the button is programmable, but most often it fulfills the function of an emergency call from the bed.

The connection of the patient button (without a call) to the patient socket (without a call) is solved by a straight cord with a pull-out connector.

This ensures safe disconnection of the elements during strong pullingin all directions without compromising the functionality or service life of the equipment.

Another option is to connect using a twisted cord.

NOTE: When ordering a patient button (no call), the type of cable required must be specified!

Technical Specification

Dimensions: 82 x 82 x 23 mm

Weight: 75g

Power supply: 3-24V

Maximum power input: 1W

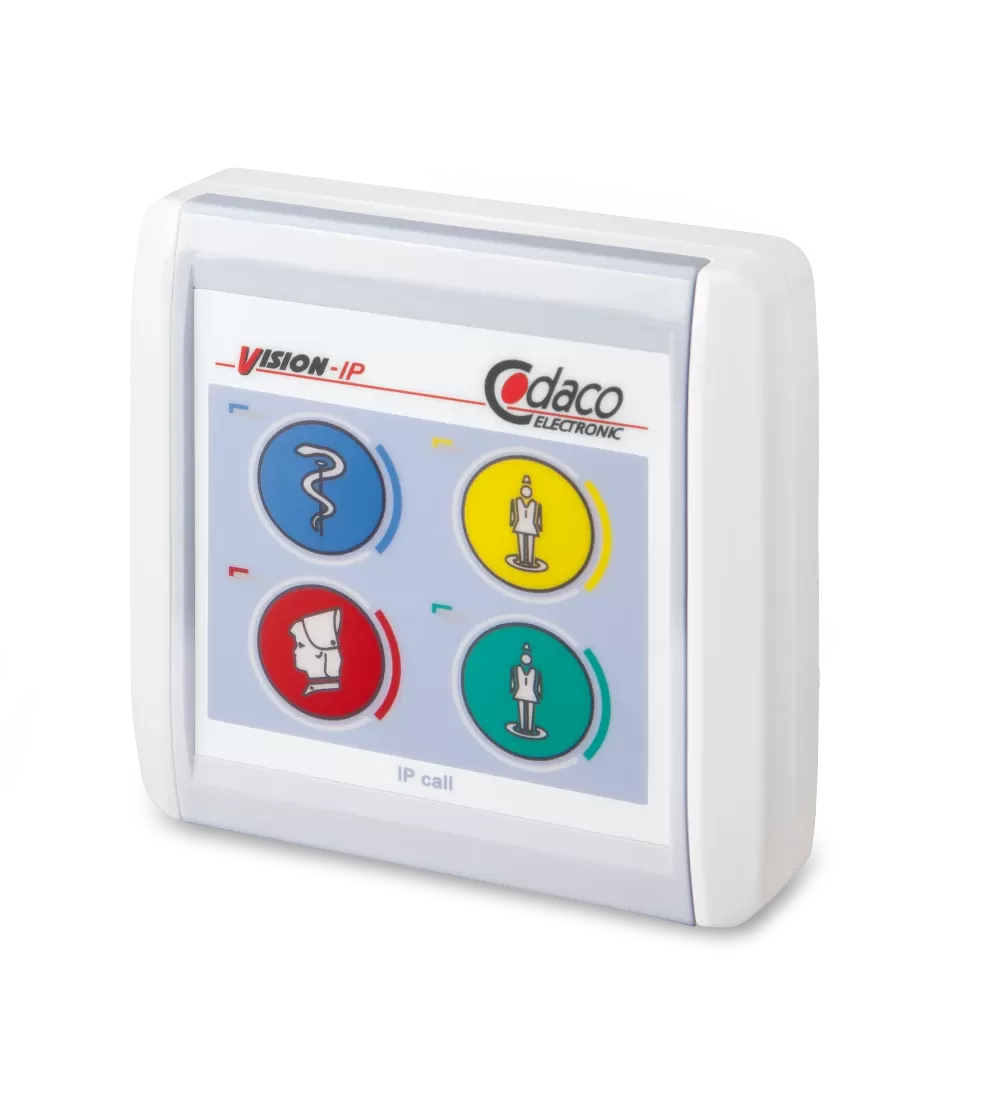

Room terminal RT-07 IP

Room terminal RT-07 IP — Description

It does not contain a loudspeaker and it is not possible to make loud voice calls from it, or to receive business or central announcements.

It is used, for example, in rooms: separate bathrooms, toilets, cleaning rooms, etc.

After registration of personnel with the appropriate button, the reception of optical and acoustic information about the origin of any type of call to the department is activated.

It enables the distinction between the registration of professional and nursing staff (green and yellow sister).

End all types of calls from the room, without having to answer the callat the main terminal.

Opening the lock at the entrance door to the department. This feature is not offered by default. It is necessary to inform the equipment supplier about the requirements for the possibility of opening the locks in advance.

It provides the connection of up to 5 external elements (for example non-speech patient units or toilet buttons/pull cords

Connectable elements are, for example, emergency call buttons and handles, a patient socket without a call or an interfering button.

Allows connection of an LED signal light.

Technical Specification

Dimensions: 82 x 82 x 23 mm

Weight: 135g

Power supply: 24V

Maximum power input: 1,8W

Room terminal with RT-07CR IP card reader

Room terminal with RT-07CR IP card reader — Description

DescriptionIt includes an integrated RFID card reader.

The integrated RFID reader enables staff registration in the room with direct entryto the system history (records the name of the participant/card registration number, date, time, location of the place). This makes it possible to monitor the movement of staff in the department.

It is mainly used in patient rooms.

After personnel registration with the appropriate button, optical and acoustic reception is activatedinformation about the origin of any kind of call to the department.

In the registration mode, the "presence" of the nurse enables the reception of voice calls.

It enables "surveillance" over departments even in rooms other than the main terminal.

It provides the termination of all types of calls from the given room, without the need to accept the callto the main terminal.

It does not allow the distinction of registration of professional and nursing staff (green nurse only).

It ensures the opening of the lock at the entrance door to the department. This function is not offered as standard, so it is necessary to inform the equipment supplier about the requirements for the possibility of opening the locks in advance.

It provides the connection of up to 5 external activation elements with the possibility of programming up to two independent functions. Connectable elements are, for example, emergency call buttons and handles, patient sockets without a call or a cancel button.

Enables the connection of an LED signaling lamp.

Antibacterial surface (silver admixture in the plastic material)

Technical Specification

Dimensions: 82 x 82 x 23 mm

Weight: 135g

Power supply: 24V

Maximum power input: 1,8W

Sanitary facilities

Emergency call button EB-07 IP

Emergency call button EB-07 IP — Description

This is a switch allowing the activation of an emergency call in connection with the room terminal.

To one room terminal or common bus it is possible to connect in parallel up to 6 elements of the type EB-07 IP, EC-07 IP and EBC-07 IP.

It is located close to the toilets and washbasins.

Technical specifications

Dimensions: 82 x 82 x 23 mm

Weight: 73g

Power supply: 24V

Maximum power consumption: 0,25W

Emergency pull cord EC-07 IP

Emergency pull cord EC-07 IP — Description

Functional equivalent of the emergency call button and push button, but without the button.

Primarily for use in the shower, bath, etc.

The length of the pull rod is adjustable so that the call can be activated by a patient who has fallen to the floor.

Antibacterial surface (silver admixture in the plastic material)

Technical specifications

Dimensions: 82 x 82 x 23 mm

Weight: 91g

Power supply: 3-24V

Maximum power consumption: 0,25W

Emergency call button and pull cord EBC-07 IP

Emergency call button and pull cord EBC-07 IP — Description

Combination of the emergency call push button and the emergency call button.

Both the push-button and the push-button function as emergency call button.

Safety disconnect for lanyard with max. load up to 10 kg

Most often placed in bathrooms and disabled toilets, etc.

The length of the lanyard is adjustable so that the call can be activated even by a patient who has fallen to the floor.

Antibacterial surface (silver admixture in the plastic material)

Technical specifications

Dimensions: 82 x 82 x 23 mm

Weight: 86g

Power supply: 3-24V

Maximum power consumption: 0,25W
