Communication system

  • Two-way voice communication (nurse-patient)
  • Suitable for: hospitals, nursing homes, spas, rehabilitation centers)

The system enables efficient and fast communication between patients and medical staff, allowing healthcare professionals to respond flexibly to patients' needs without having to immediately enter the room in person.

Communication device
Nurse station

Master terminal MT-07 IP

Master terminal MT-07 IP

Description

  • The master terminal centralizes the operation of the communication device into a room with a permanent service, which is usually the nurses' office. It offers a highly comfortable and clearly arranged graphical user interface, combined with simple operation and control of function keys directly on the operating graphic touch screen.
  • 10.4 "LCD panel with direct control on the touch screen (touch-screen).
  • Voice communication takes place via modern HD VoIP technology.
  • Ergonomic shape of the terminal.
  • Variable placement on a table or wall.
  • Includes USB port for data backup and SW upgrade.
  • The main terminal is supplied with a power adapter and a cable for connection to the main terminal socket.

Main function

  • Centralization of the operation of the communication device into a room with permanent service.
  • Voice navigation message alerting staff to new calls and announcing the location of the call.
  • Possibility to connect any number of terminals on each department with the possibility of defining filters for selected types of calls or room numbers (area zone nursing).
  • Unlimited number of displayed call points.
  • Enter the participant's name.
  • Calling a participant using speed dialing.
  • Discrete conversational connection of medical staff with patients / clients.
  • Loud transmission of messages to all rooms within the department (central announcement).
  • Location of staff registration in bed rooms and display on the main terminal.
  • Possibility of transferring a telephone call from the city telephone network to the patient's / client's bed.
  • Record the history of all types of calls and their protection in the event of a network failure.
  • Image transmission from an IP camera located at the front door.
  • Night operation (volume regulation of room terminals, main terminal).

Technical Specifications

Material: Thermoplastic, stainless steel, steel

Color: White

Dimensions: 338 x 210-235 x 195 mm

Weight: 4475g

Power supply: Adaptér 230V / 12V / 2A.

Maximum power consumption: 12W.

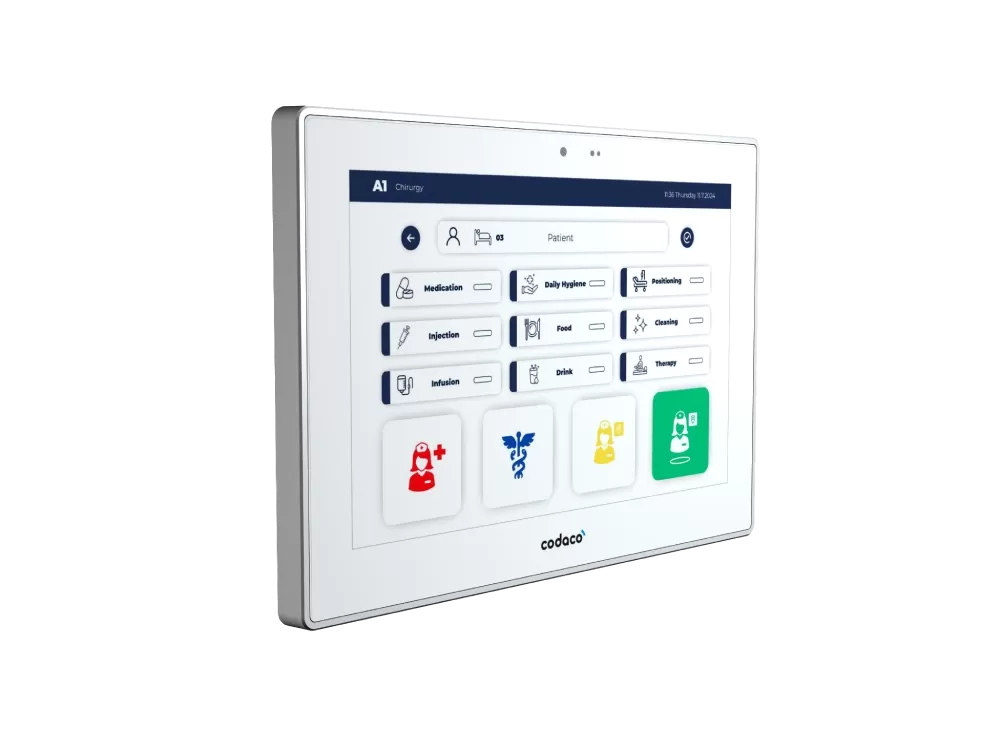

Service terminal ST-20 IP

Service terminal ST-20 IP

Description

  • 8" colour touch screen
  • Direct or external (from external input) activation of any call type
  • Allows loudspeaker connection to the main terminal.
  • After registration of the personnel by the button, the reception of optical and acoustic information about the occurrence of any kind of call in the department is activated, and at the same time the voice navigation notifies the personnel of the place and reason for the occurrence of the call.
  • It allows differentiation of registration of professional and nursing staff (green and yellow nurse,doctor).
  • Allows ‘supervision’ of the ward in rooms other than the main terminal.
  • In the registration mode, the ‘presence’ of the nurse allows the reception of a call.
  • Allows termination of all types of calls from a given room, without the need to receive calls at the main terminal.
  • Activation of doctor's call - ALARM, code blue.
  • Activation of room cleaning request.
  • Activation of the request to call maintenance.
  • Voice transmission of messages during the so-called central announcement.
  • Enables opening of the lock at the ward entrance door. By receiving a voice call from the entrance, staff can ask the visitor who they are before entering.
  • Power supply PoE or 24V, connection to Ethernet
  • Allows connection of CL signal lamp.
  • Built-in RFID reader, BT module integrated in the base
  • Possibility of integrating an 868MHz reception module
  • Different options for staff authorisation - password, pin, RFID, BT, NFC option
  • 5 universal inputs for connecting external activation/deactivation elements
  • Receiving external wireless activation/deactivation elements
  • Possibility to display current temperature and air quality (Co2) in the room
  • Possibility to display additional information for clients - advertising, weather, menu
  • Quick and easy recording of the care provided to the patient/client. Option to choose to record to own database server or direct collaboration with third party sw (e.g. CYGNUS - Iresoft).
  • Recording the presence of a nurse or other staff in the SQL database event history
  • Antibacterial surface (silver admixture in the plastic material)

Technical specifications

Dimensions: 210 x 148 x 35 mm

Weight: 605g.

DECT phone (analog.line)

DECT phone (analog.line)

Description

  • Portable analog cordless telephone DECT with a function that allows the caller number to be displayed "CALL ID".
  • The range of the device (max. Distance of the handset from the base) is usually 30 m inside the building. The range of the device always depends on the local conditions and properties of the building materials used.
  • Used to receive telephone calls (eg from the city or hospital telephone network) with the possibility of transferring the telephone call to the patient's bed (only via analog line).
  • In the case of an active call, it displays all types of calls (in some cases, due to the limited size of the display, only basic data can be displayed - type of calland room number).
  • Allows you to answer a call and talk directly to the caller.In the idle state (there is no call within the IP communication system), the cordless telephone serves as a normal business telephone within the telephone network of the medical device.
  • The base of the telephone serves as a charger for the rechargeable batteries of the portable telephone.

Technical specifications

Dimensions: 154 x 50 x 28 mm

Weight: 120g.

Power supply: 230V, 50Hz.

Maximum power consumption: 4W.

Entrance

Entrance Terminal ET-07 IP

Entrance Terminal ET-07 IP

Description

  • Provides a loudspeaker connection to the main terminal.
  • It is mainly placed at the entrance door to the department as a doorbell.
  • In conjunction with a card reader, it creates a simple access system.
  • Possibility of connecting an LED signal light.
  • The element is not intended for outdoor use!
  • As with all other elements of the system, it can only be used indoors (unless otherwise stated).
  • Enables connection to an IP camera and transmission of images from the entrance door to the main terminal.
  • Antibacterial surface (silver admixture in the plastic material)

Technical specifications

Dimensions: 151 x 82 x 23 mm

Weight: 207g.

Power supply: 24V

Maximum power consumption: 1,8W.

IP camera

IP camera

Description

  • After activating a call from a specific location, it allows the transmission of an unrecorded online image to the main terminal. The most common is located at the entrance door to the department.
  • It is mounted on the wall or ceiling using a custom bracket.
  • A commercial PoE adapter ( max 15W) connected to 230V/50Hz is usually used for power supply
  • Alternatively, a 24V system power supply or a 12V DS module can be used, but it depends on the capabilities of the specific camera type.

Technical specifications

Lens: 3,8mm

30 frames per second

Dimensions: 92.6 x 92.6 x 79.5 mm

Weight: 500g.

Power supply: 230V (12V)

Maximum power consumption: 15W.

Corridor

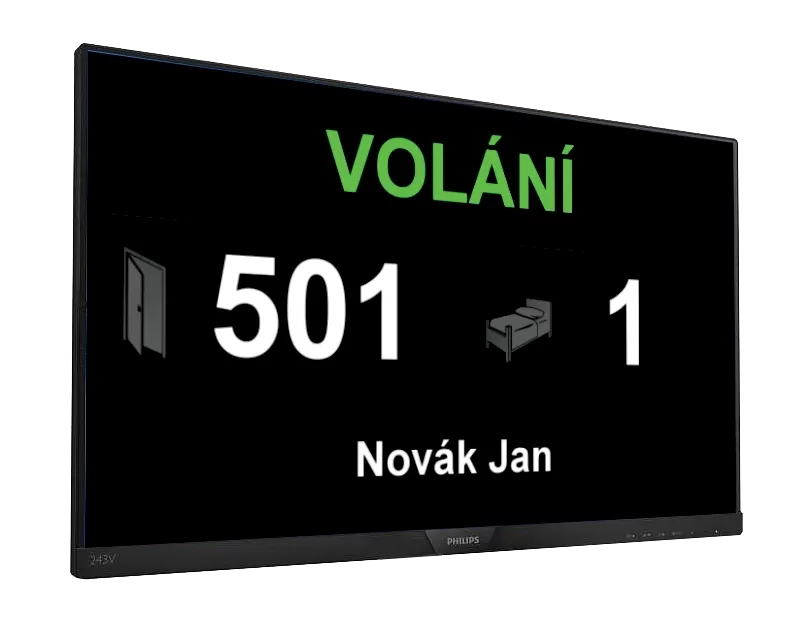

LCD panel

LCD panel

Description

  • Used to display the date, time and location of the call location, including its address identification.
  • It distinguishes the types of calls in color.Possible selection of graphics for time display.
  • Any LCD panel size (eg 22.5 "to 55").
  • Optionally displays the caller's name.
  • It is most often placed in the corridors of the department by hanging on the wall or ceiling.
  • Allows double display design to ensure readability from both sides.
  • The LCD panel is supplied with all accessories.
  • The required version must be specified when ordering.
    - LCD-OW panel one-sided on the wall
    - LCD-OC panel on one side of the ceiling
    - LCD-DW panel on both sides on the wall
    - LCD-DC panel on both sides of the ceiling

Technical Specification

Dimensions: 24"

Weight: by size

Power supply: 230V

Corridor lamp LED CL

Corridor lamp LED CL

Description

  • The signal lamp has three different colored lights, signaling in connection with the room terminal the status and type of call at the given location.
  • It is placed visibly in the hallway above the door of each bed room or separate bathroom and toilet. (Note that the light is not normally placed above the service room door).
  • Antibacterial surface (silver admixture in the plastic material)

Technical specifications

Dimensions: 82 x 82 x 56 mm

Weight: 105g.

Power supply: 24V

Maximum power consumption: 1,5W.

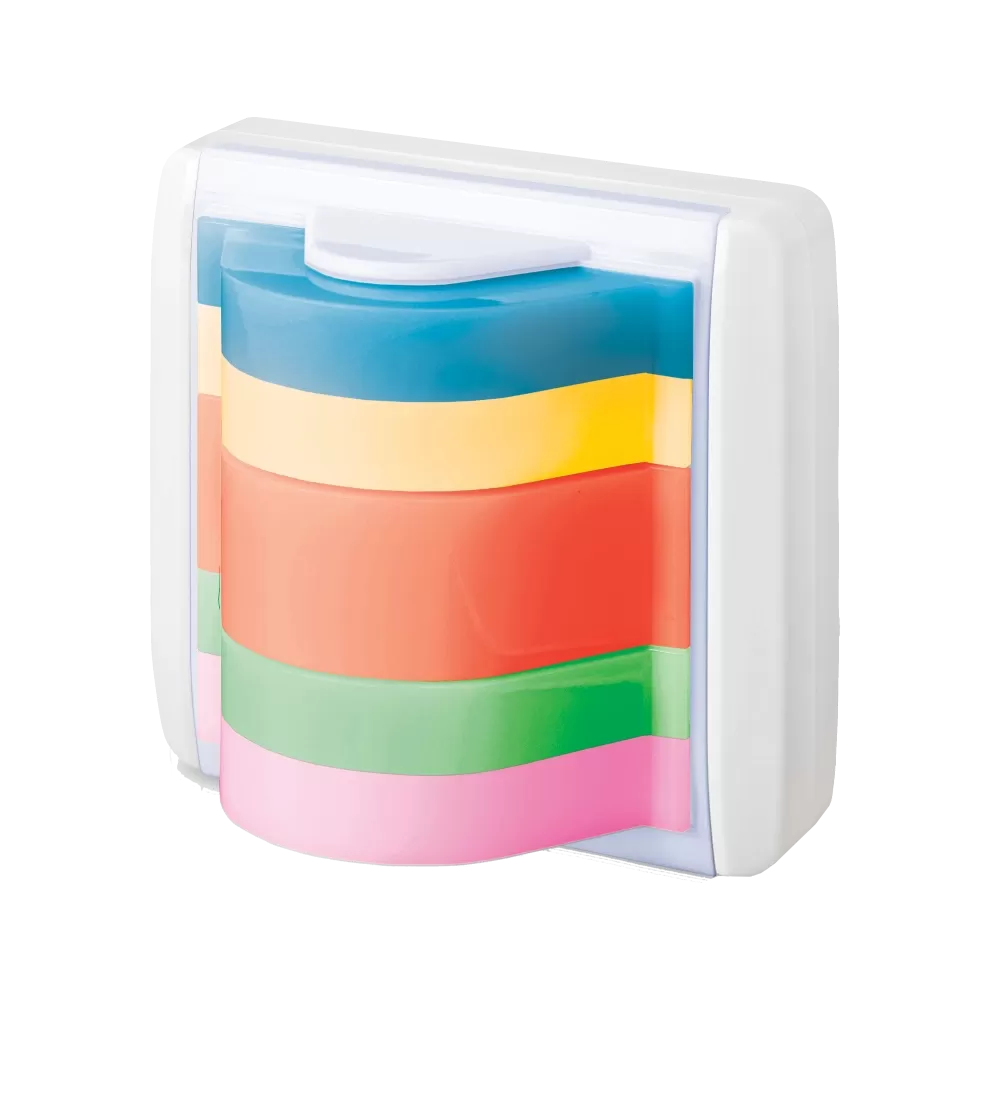

IP Directional signaling lamp LED DL-5

IP Directional signaling lamp LED DL-5

Description

  • Configuration settings are made with the help of standard configuration software.
  • Option to stick directional arrows (they are not part of the lamp).
  • It is used in cases of a fragmented floor plan of the department, when the nursing staff cannot see all the lights above the room from the central station (corridor).

  • Red - emergency call.
  • Blue - code blue.
  • Pink - Nurse attack alarm in the room.
  • Green - the presence of a nurse in the room.
  • Yellow - the presence of an auxiliary nurse (nurse).
  • Antibacterial surface (silver admixture in the plastic material)

Technical specifications

Dimensions: 82 x 82 x 56 mm

Weight: 140g

Power supply: 24V

Maximum power consumption: 1,5W

Patient's room

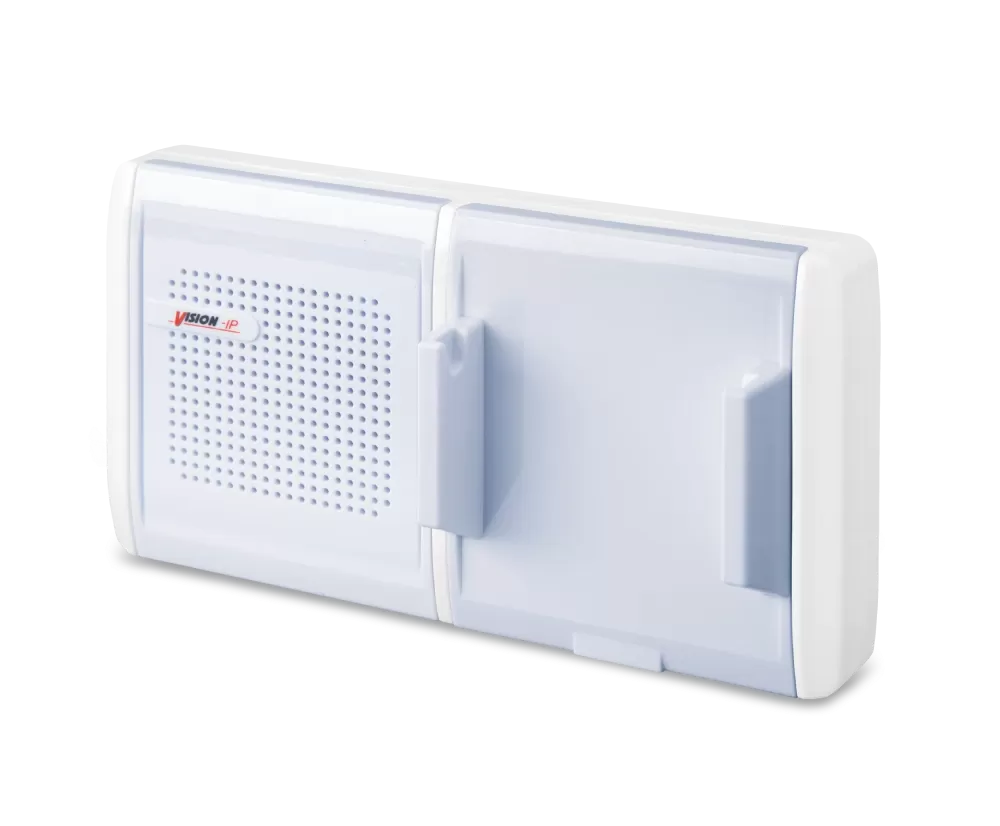

Patient's bed connection with holder and speaker BC-07HS IP

Patient's bed connection with holder and speaker BC-07HS IP

Description

  • This is an addressable IP element. In conjunction with the patient terminal, it allows the selection of a loud or discrete call connection and listening to an entertainment program, with the patient button only a loud listening program and a loud call connection.
  • The socket with holder and loudspeaker is used for direct hanging and connection of terminals and patient buttons.
  • The connector for connecting the patient terminal is led out from the underside of the element to the position of the holder.

Technical specifications

Dimensions: 151 x 82 x 39 mm

Weight: 205g

Power supply: 24V

Maximum power consumption: 1,8W

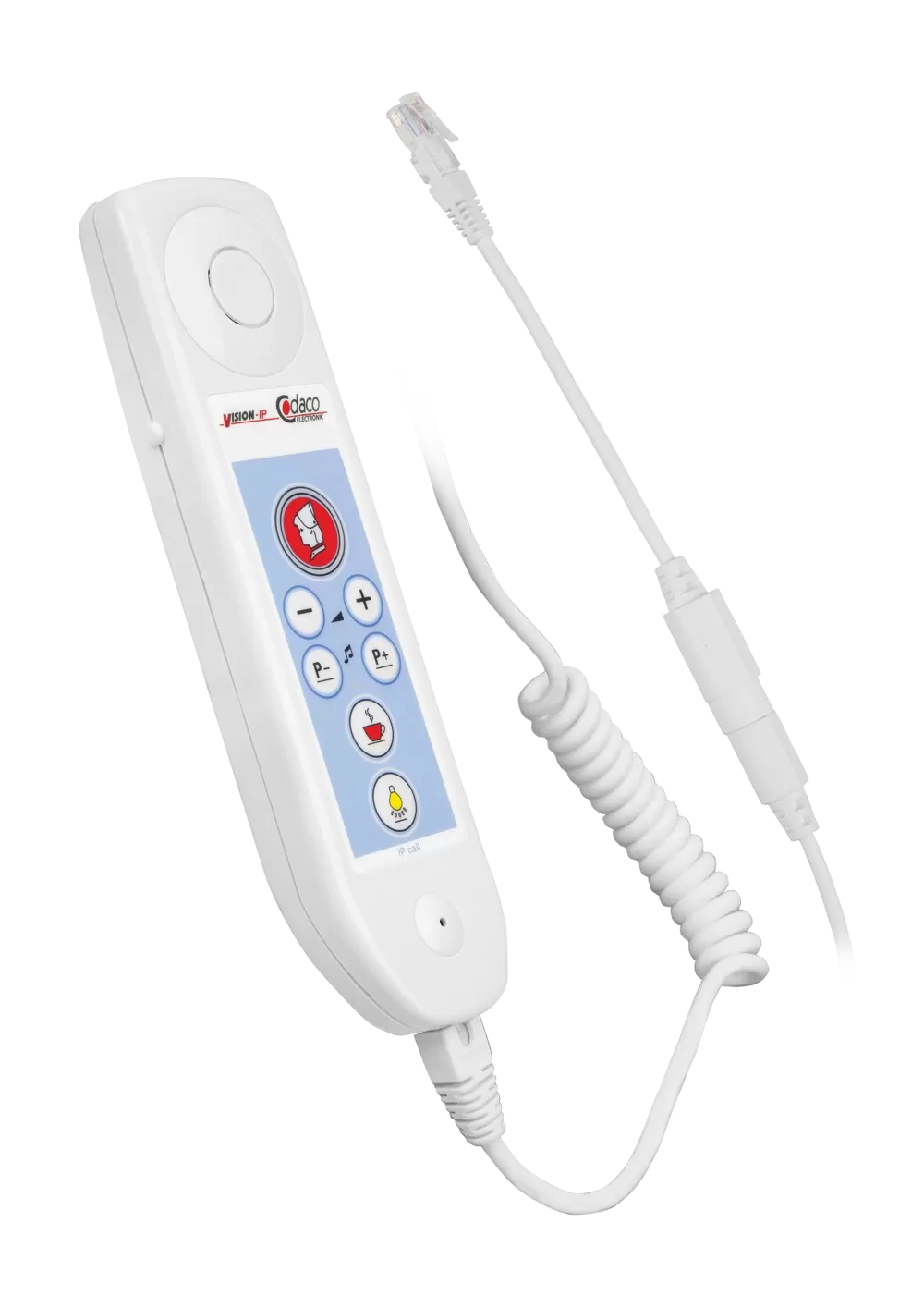

Patient's terminal with service call button PT-07S IP

Patient's terminal with service call button PT-07S IP

Description

  • It is an element in the shape of a telephone handset with the possibility of hanging in a patient socket holder or a separate holder.
  • It is designed for listening to entertaining audio programs and discrete or loud conversation of the patient to the main terminal or call the nurse via a large red button (backlit at night) with the nurse symbol.Allows calling "nursing" staff with a button with a "coffee" symbol.
  • Depending on the configuration, this call can be routed again in the simplest caseto the main terminal, where it is color-coded which personnel are called.
  • In conjunction with the light relay, it allows the control of one light in the room, which is usually part of the lighting and installation ramp.
  • The connection of the patient terminal to the patient socket is solved by a straight cord with a pull-out connector.
  • This ensures safe disconnection of the elements in case of strong tension in all directions,without compromising the functionality or service life of the equipment.
  • Another option is to connect using a twisted cord.
  • NOTICE: When ordering a patient terminal, the type of cable required must be specified!

Technical Specification

Dimensions: 52 x 198 x 23 mm

Weight: 270g

Power supply: 24V

Maximum power consumption: 1,2W

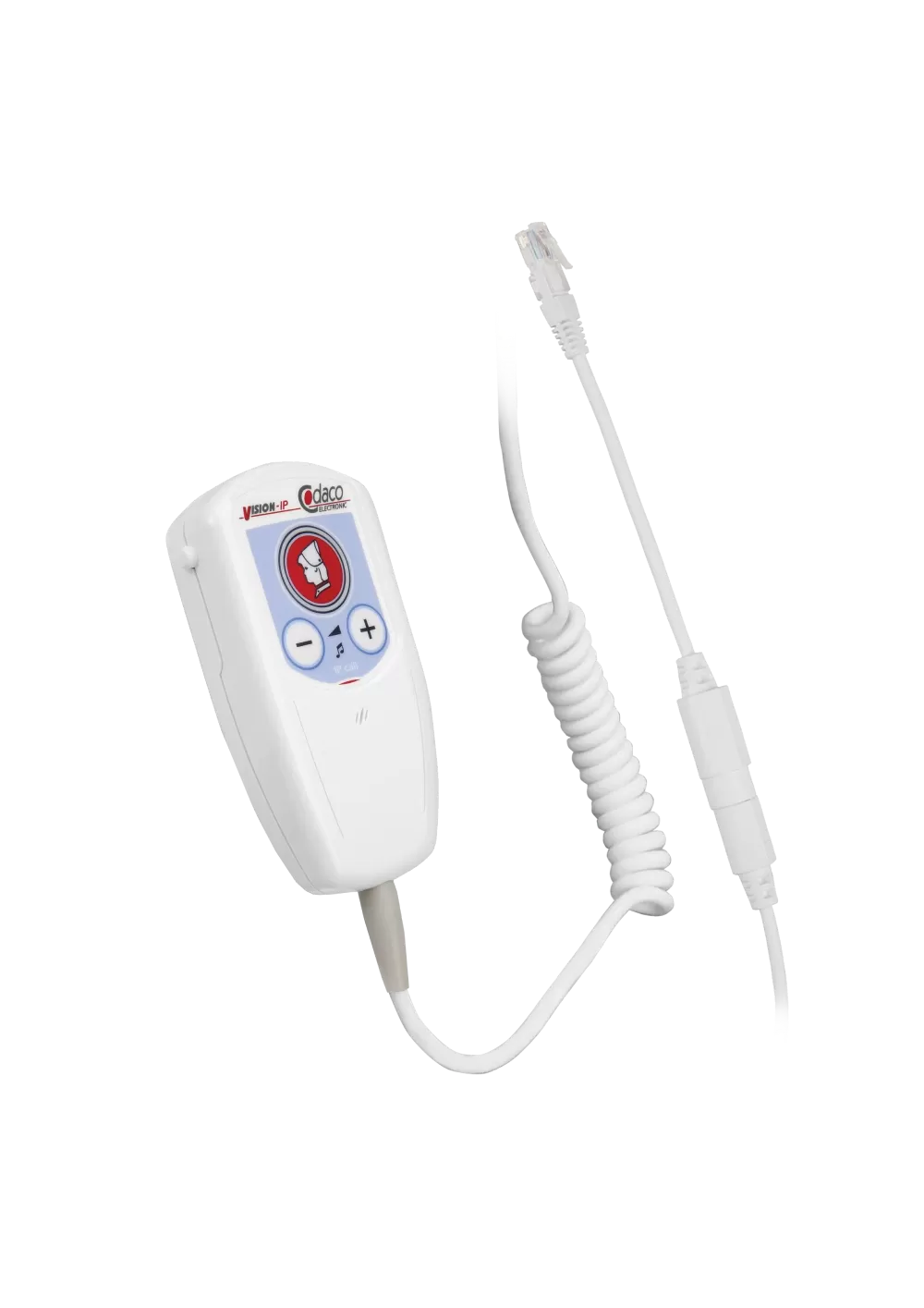

Patient's unit with microphone and radio control PU-07R

Patient's unit with microphone and radio control PU-07R

Description

  • It is a simpler variant of the patient terminal.
  • It allows only loud listening to entertaining audio programs and loud conversation of the patient to the main terminal or. call the nurse via a large red button (backlit at night) with the nurse symbol.
  • The choice between the button and the patient terminal depends primarily on the user of the device.
  • This element cannot be used with the patient socket version without a loudspeaker.
  • It is not possible to switch between entertainment programs. The first program is always selected. The element does not contain keys that allow you to switch programs. It contains only the volume control keys.
  • The connection of the patient button to the patient socket is solved by a straight cord with a pull-out connector. This ensures safe disconnection of the elements under strong tension in all directions without compromising the functionality or service life of the device.
  • Another option is to connect using a twisted cord.
  • NOTICE: When ordering a patient button, the type of cable required must be specified!

Technical Specification

Dimensions: 52 x 100 x 22 mm

Weight: 75g

Power supply: 24V

Maximum power consumption: 1W

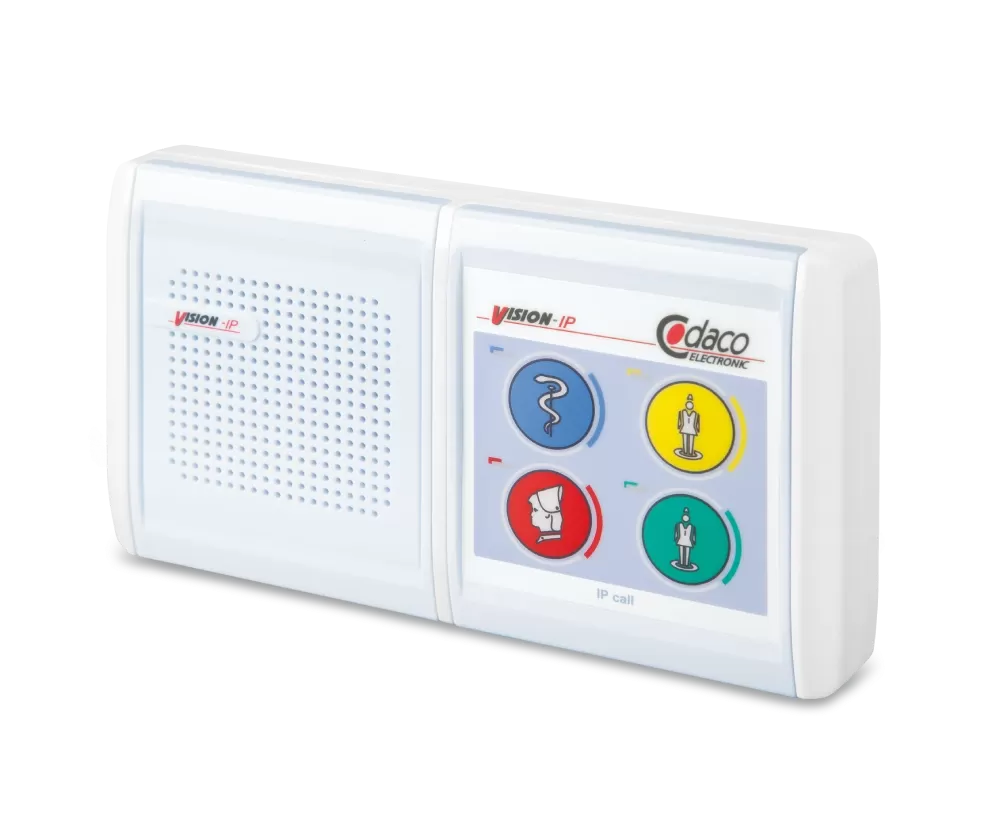

Room terminal with voice RT-07V IP

Room terminal with voice RT-07V IP

Description

  • Allows voice communication (speech) with the Master Terminal MT-07 IP.
  • Used mainly at wards or doctor and nurse offices.
  • After staff registration with the respective button receipt of optical and acoustic information about any type of call to the department is activated. The voice navigation at the same time notifies the staff about the place and reason of the call.
  • RT-07V IP allows for distinction of registration of doctors and nurses (Green and yellow nurse).
  • Allows for "supervision" over departments in rooms other than the room there MT-07 IP is located.
  • In the nurse "presence" registration mode allows for voice call receipt.
  • Allows for call termination from the given ward without the necessity of the call receipt at MT-07 IP.
  • Another function is loud announcement replaying in the case of for example a central announcement.
  • Allows for department entrance door lock unlocking (this function is mostly allocated to the yellow button). The room terminal includes a loudspeaker, thus the staff can ask the visitors who they are and why they are entering the department before they are let in. his function is not part of standard equipment, that is why the supplier must be informed about this requirement in advance.
  • Allows for connection of up to 5 external activation elements with the possibility to program up to two independent functions to each of them. The connectable elements include for example EB-07 IP, EC-07 IP, EBC-07, CC-07 IP, PP, BC-01H + PU-01, BC-01 + PU-01L.
  • It is further possible to connect a LED signal lamp CL.

Technical Specification

Dimensions: 151 x 82 x 23 mm

Weight: 212g

Power supply: 24V

Maximum power input: 1,8W

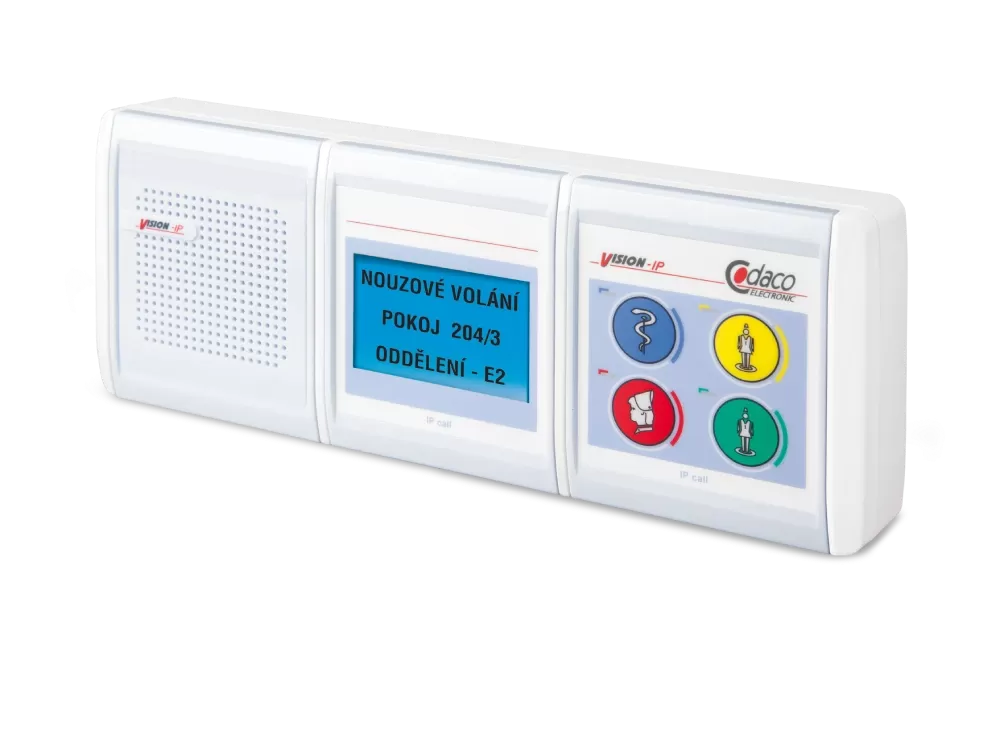

Room terminal with voice and display RT-07DV IP

Room terminal with voice and display RT-07DV IP

Description

  • RT-07DV IP is a more comfortable version of the standard room terminal RT-07V IP, including a loudspeaker and a graphical information display.
  • The information display shows:
    - Identification of the place of origin and type of call.
    - Date and time is displayed in the standby mode.
    - In the case of a call (if staff are registered) it displays room number, ward number and call type.
  • Allows voice communication (speech) with the Master Terminal MT-07 IP.
  • Used mainly at wards or doctor and nurse offices.
  • With the "nurse presence" optical and acoustic information about any type of call to the department is activated. The voice navigation at the same time notifies the staff about the place and reason of the call.
  • RT-07DV IP allows for distinction of registration of doctor and nurse (green and yellow nurse).
  • Allows for "supervision" over departments in rooms other than the room there MT-07 IP is located.
  • Allows for call termination from the given ward without the necessity of the call receipt at MT-07 IP.
  • Another function is loud announcement replaying in the case of for example a central announcement.
  • Allows for department entrance door lock unlocking (this function is mostly allocated to the yellow button). The room terminal includes a loudspeaker, thus the staff can ask the visitors who they are and why they are entering the department before they are let in. This function is not part of standard equipment, that is why the supplier must be informed about this requirement in advance.
  • Allows for connection of up to 5 external activation elements with the possibility to program up to two independent functions to each of them. The connectable elements include for example EB-07 IP, EC-07 IP, EBC-07, CC-07 IP, PP, BC-01H + PU-01, BC-01 + PU-01L.
  • It is further possible to connect a LED signal lamp CL.

Technical Specification

Dimensions: 220 x 82 x 33 mm

Weight: 304g

Power supply: 24V

Max power input: 2,8W

Sanitary facilities

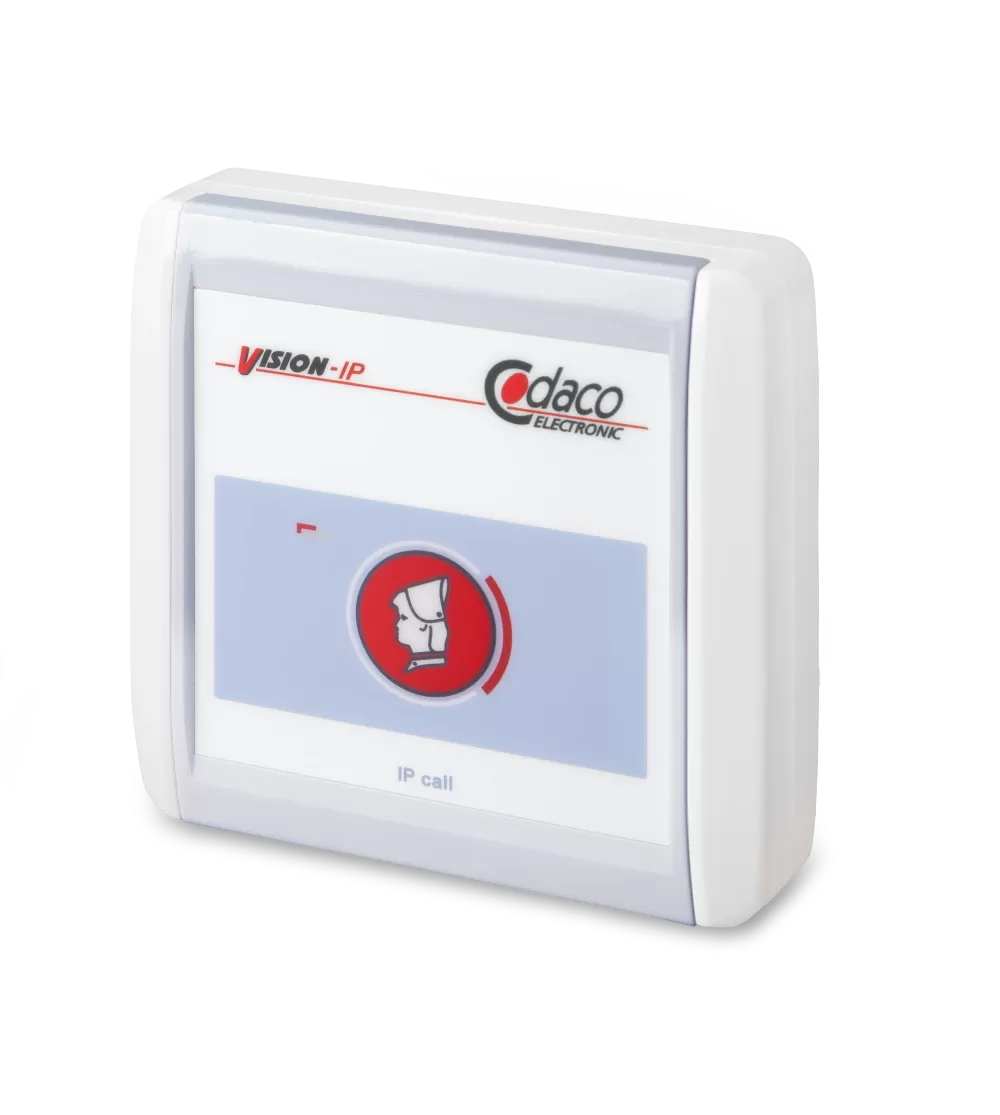

Emergency call button EB-07 IP

Emergency call button EB-07 IP

Description

  • This is a switch allowing the activation of an emergency call in connection with the room terminal.
  • To one room terminal or common bus it is possible to connect in parallel up to 6 elements of the type EB-07 IP, EC-07 IP and EBC-07 IP.
  • It is located close to the toilets and washbasins.

Technical specifications

Dimensions: 82 x 82 x 23 mm

Weight: 73g

Power supply: 24V

Maximum power consumption: 0,25W

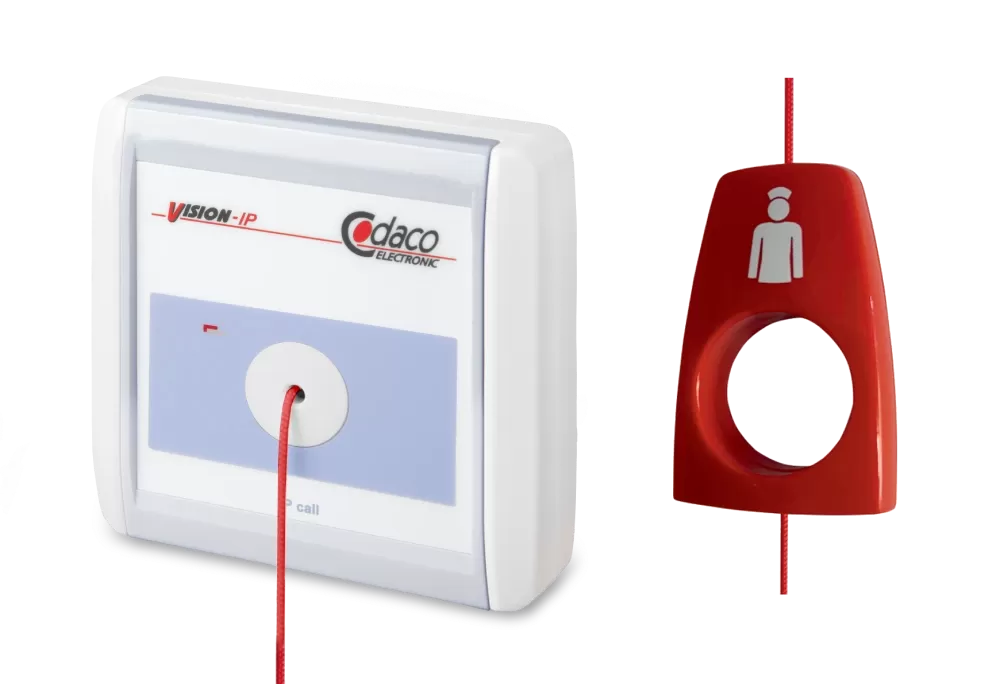

Emergency pull cord EC-07 IP

Emergency pull cord EC-07 IP

Description

  • Functional equivalent of the emergency call button and push button, but without the button.
  • Primarily for use in the shower, bath, etc.
  • The length of the pull rod is adjustable so that the call can be activated by a patient who has fallen to the floor.
  • Antibacterial surface (silver admixture in the plastic material)

Technical specifications

Dimensions: 82 x 82 x 23 mm

Weight: 91g

Power supply: 3-24V

Maximum power consumption: 0,25W

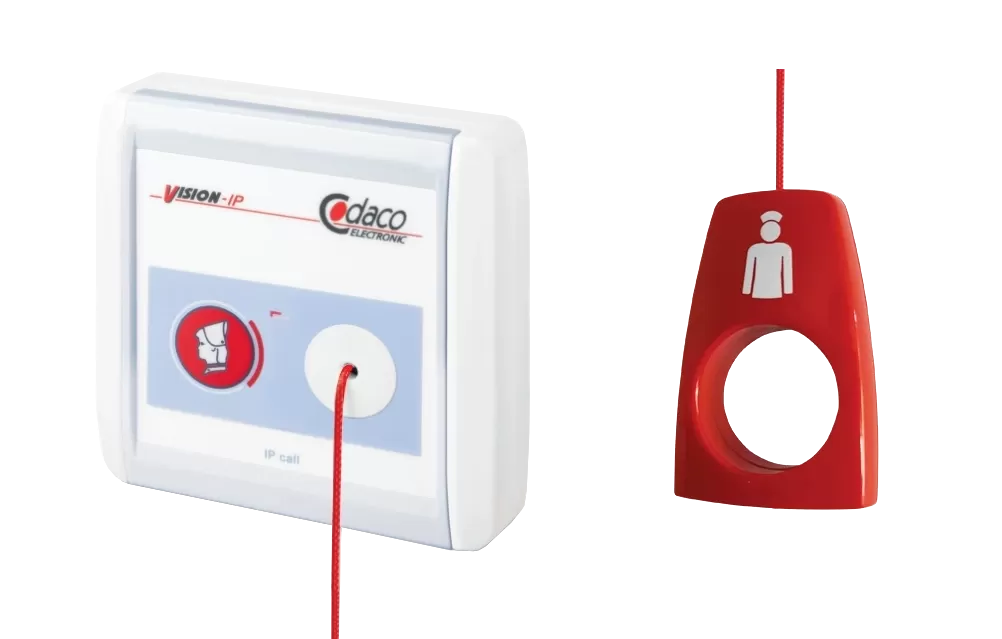

Emergency call button and pull cord EBC-07 IP

Emergency call button and pull cord EBC-07 IP

Description

  • Combination of the emergency call push button and the emergency call button.
  • Both the push-button and the push-button function as emergency call button.
  • Safety disconnect for lanyard with max. load up to 10 kg
  • Most often placed in bathrooms and disabled toilets, etc.
  • The length of the lanyard is adjustable so that the call can be activated even by a patient who has fallen to the floor.
  • Antibacterial surface (silver admixture in the plastic material)

Technical specifications

Dimensions: 82 x 82 x 23 mm

Weight: 86g

Power supply: 3-24V

Maximum power consumption: 0,25W

Cancel button CC-07 IP

Cancel button CC-07 IP

Description

  • The button serves primarily for targeted routing of medical personnel to the place from which the EMERGENCY CALL was activated, usually in a bathroom or WC, which is part of a ward.
  • It is located near the door in the bathroom or toilet.
  • The medical personnel are not allowed to deactivate a call by registration of personnel on the room terminal at the entry door to the ward.
  • The deactivation of this call is only possible using the CC-07 IP button located directly in the bathroom or WC.
  • This combination ensures greater safety for patients by directly routing medical personnel to the place where the call originated.

Technical specifications

Dimensions: 82 x 82 x 23 mm

Weight: 70g

Power supply: 24V

Maximum power consumption: 0,25W

Inquiry form

  • Items marked with an asterisk (*) are required.

Tento web využívá cookies

This website is using cookies to provide services, personalize ads, and monitor traffic. By continuing to use this site you are agreeing with usage of cookies. More information.
Odmítnout vše Nastavení Agree

Nastavení cookies

Vaše soukromí je důležité. Můžete si vybrat z nastavení cookies níže. More information.

Potvrdit vše Potvrdit moje volby
